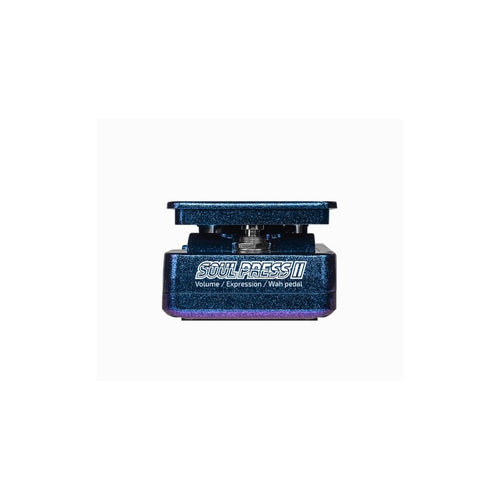

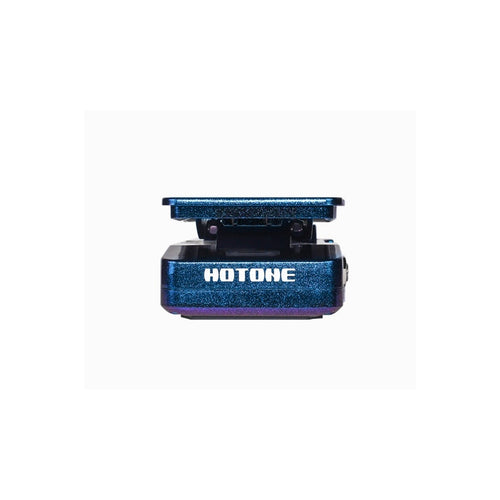

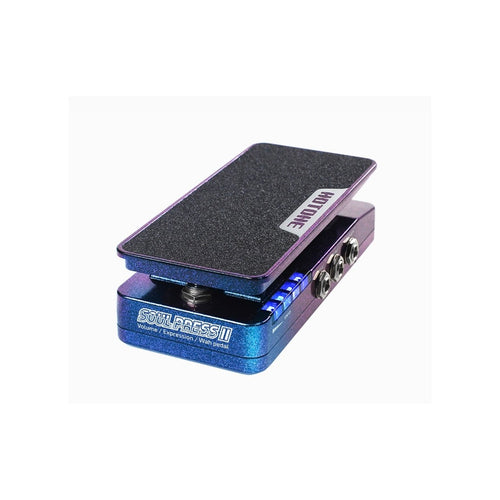

Hotone Soul Press II Volume / Wah / Expression Pedal


The pedal position indicator shows the pedal position in real time. The TONE mode selection and Q value adjustment represent an absolute improvement in tone and functionality. Multiple I/O options provide more diverse access. The reimagined pedal size maintains portability while delivering an optimal ergonomic experience. Soul Press II is a truly versatile wah pedal.

Active volume design guarantees lossless sound
The newly-designed active volume circuit keeps you free of dreaded “tone suck”
Internal structure upgrade
Through internal structural optimization, we improved the circuit structure stability, greatly reducing noise interference caused by intense use

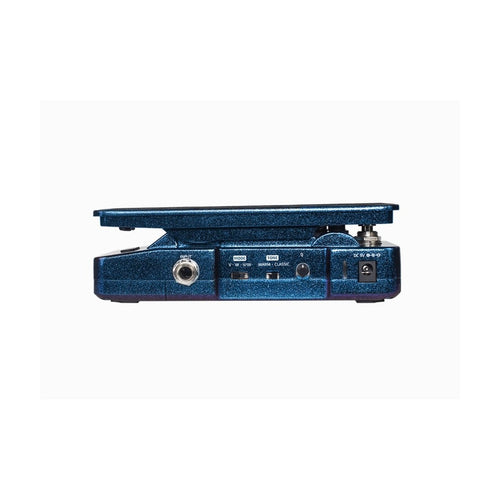

4 function modes
Up to 4 modes (volume, wah, volume/wah, expression)
Q (effect range) and TONE (frequency range) adjustments
Q and TONE adjustments give you a wider tone selection, from soothing moods to a wild roars, all the emotion available in one pedal

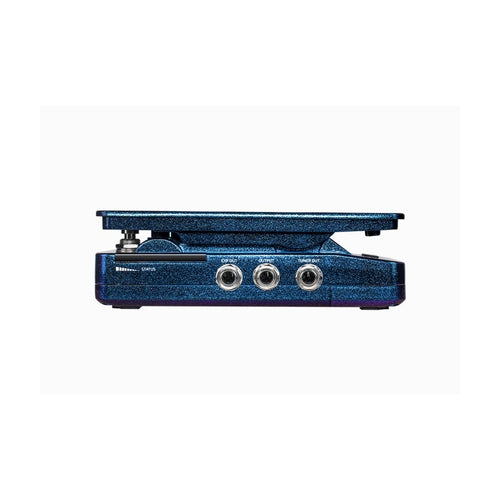

Multiple I/O options enhance playability
Additional independent expression pedal output lets you control the parameters of other effects in real time; the external tuner jack moves your tuner outside of the effect chain, removing unnecessary sound contamination

Clear STATUS indicator
The adjustable mode treadle STATUS indicator shows the pedal position in real time


While maintaining the signature portability of Hotone designs, a larger contact surface provides a better overall ergonomic experience

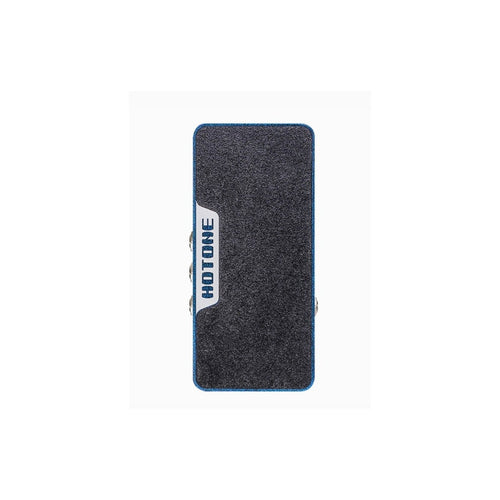

The textured surface is sturdy and slip-resistant

Dimensions: 81mm(W)×162mm(D)×51mm(H)


Combination of lightweight aluminum alloy casing with durable steel shaft connection
Polarized, cool casing changes colors with the changes in light and visual angle

Features
✪ True Bypass
✪ Increased footprint for a better user experience
✪ Cool STATUS LEDs with mode switch indicate pedal position in real time
✪ 4 in 1 functionality (volume, expression, wah, volume/wah)
✪ Inspired by the legendary vocal-like wah sound
✪ Q (wah filter range) and WARM/CLASSIC (frequency range) controls for a more flexible wah tone
✪ Active volume design for keeping lossless tone
✪ Separate tuner and expression outputs for more connection possibilities
✪ 9V DC or 9V battery power supply
Specifications
Pot Resistance (EXP out): 10kΩ
Input Impedance: 1MΩ
Output Impedance: 100Ω
Wah Range Selector: WARM—290Hz to 1.4kHz, CLASSIC—360Hz to 1.8kHz
Current Consumption Max 30mA
Dimensions: 81mm (W) x 162mm (D) x 51mm (H)
Weight 500g
