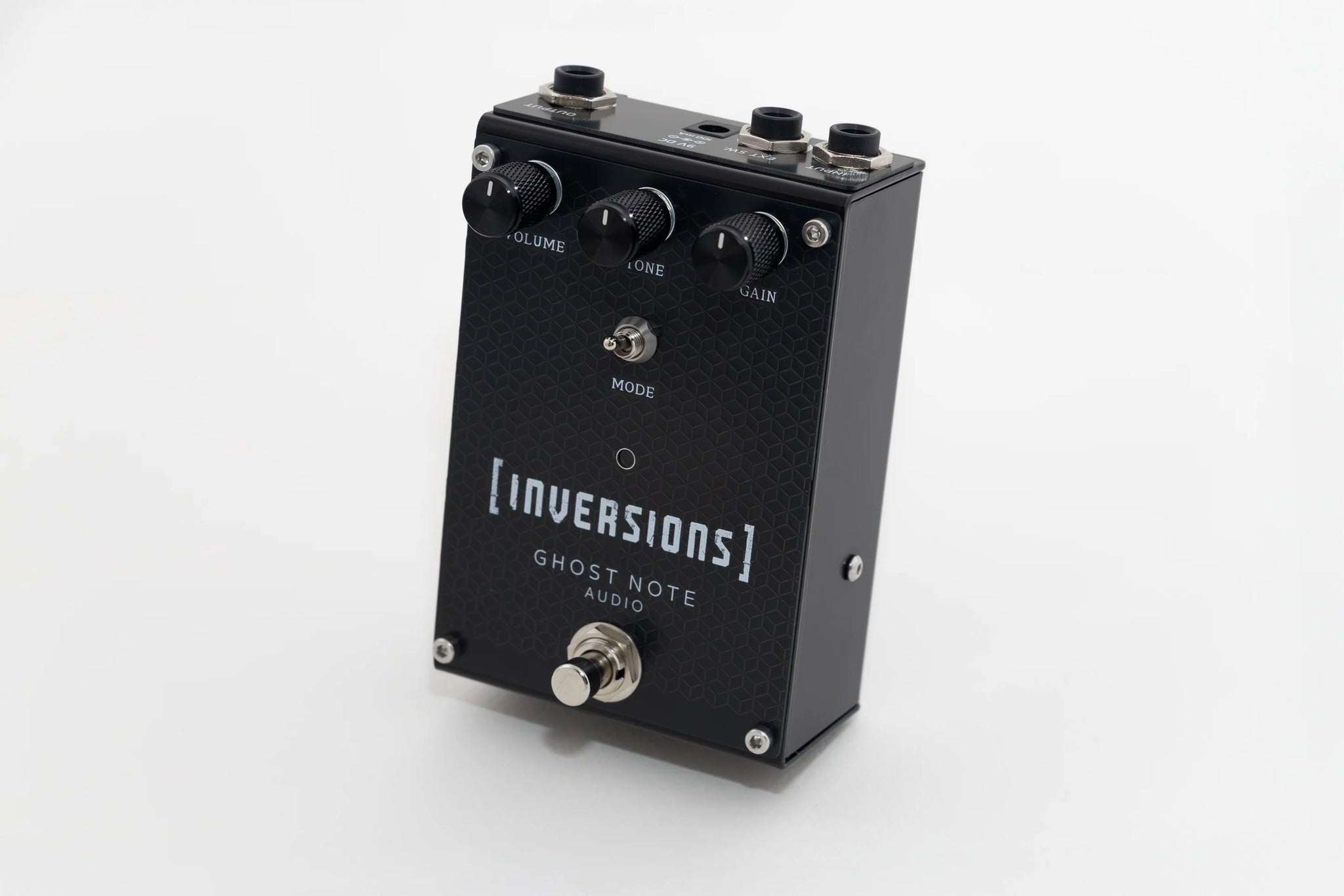

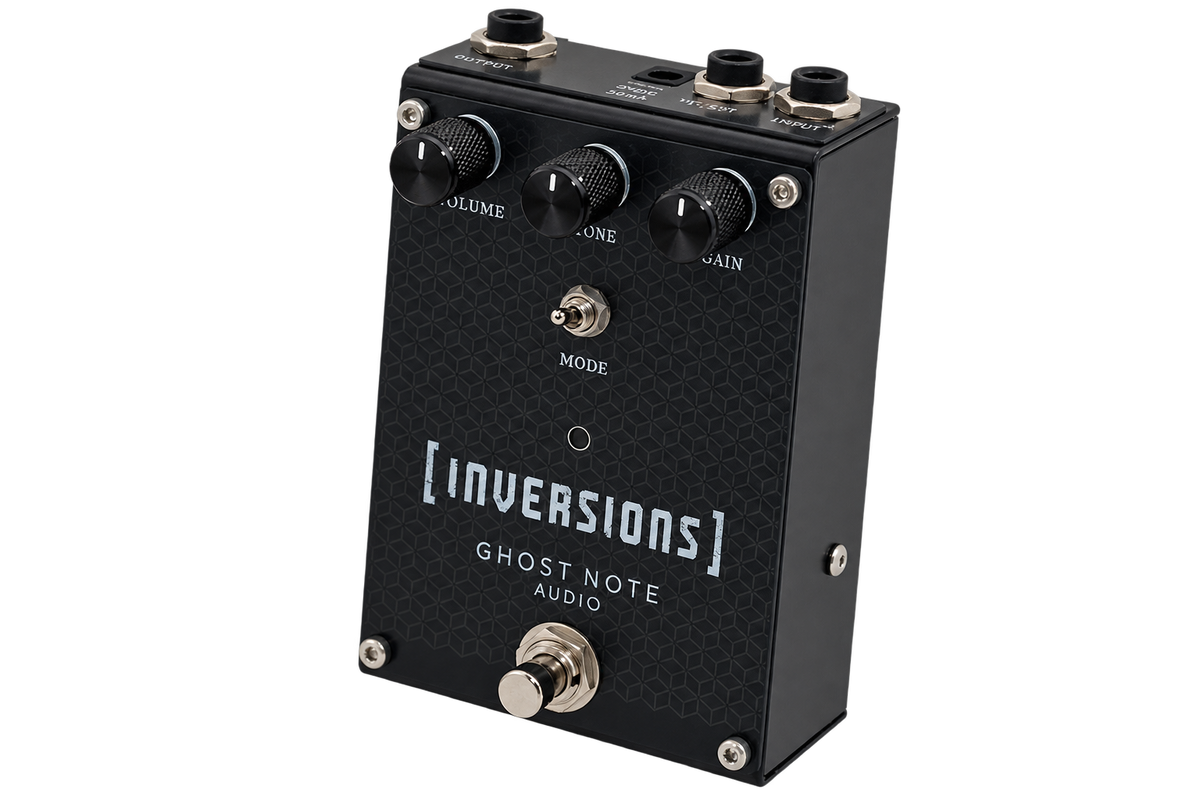

Controls

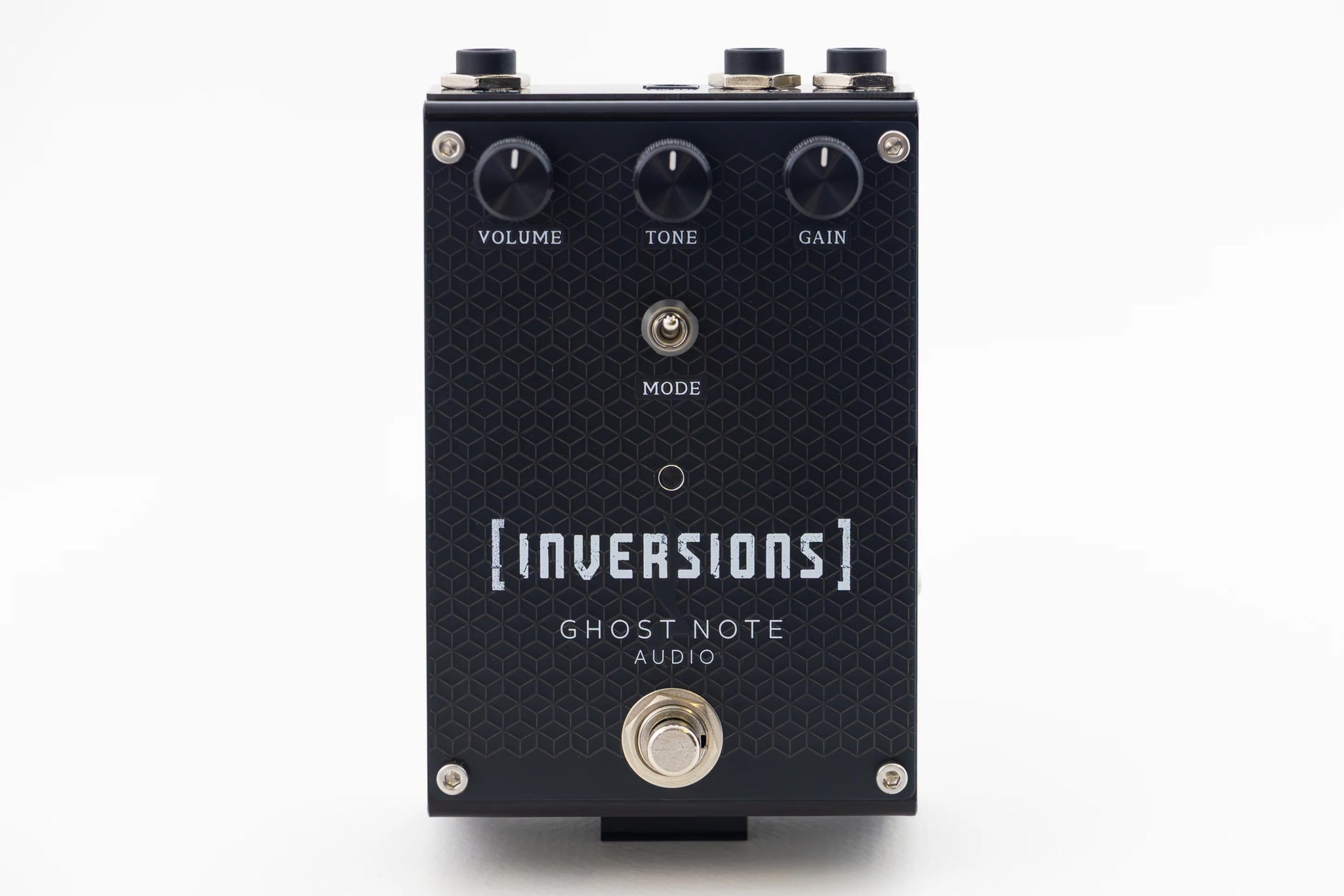

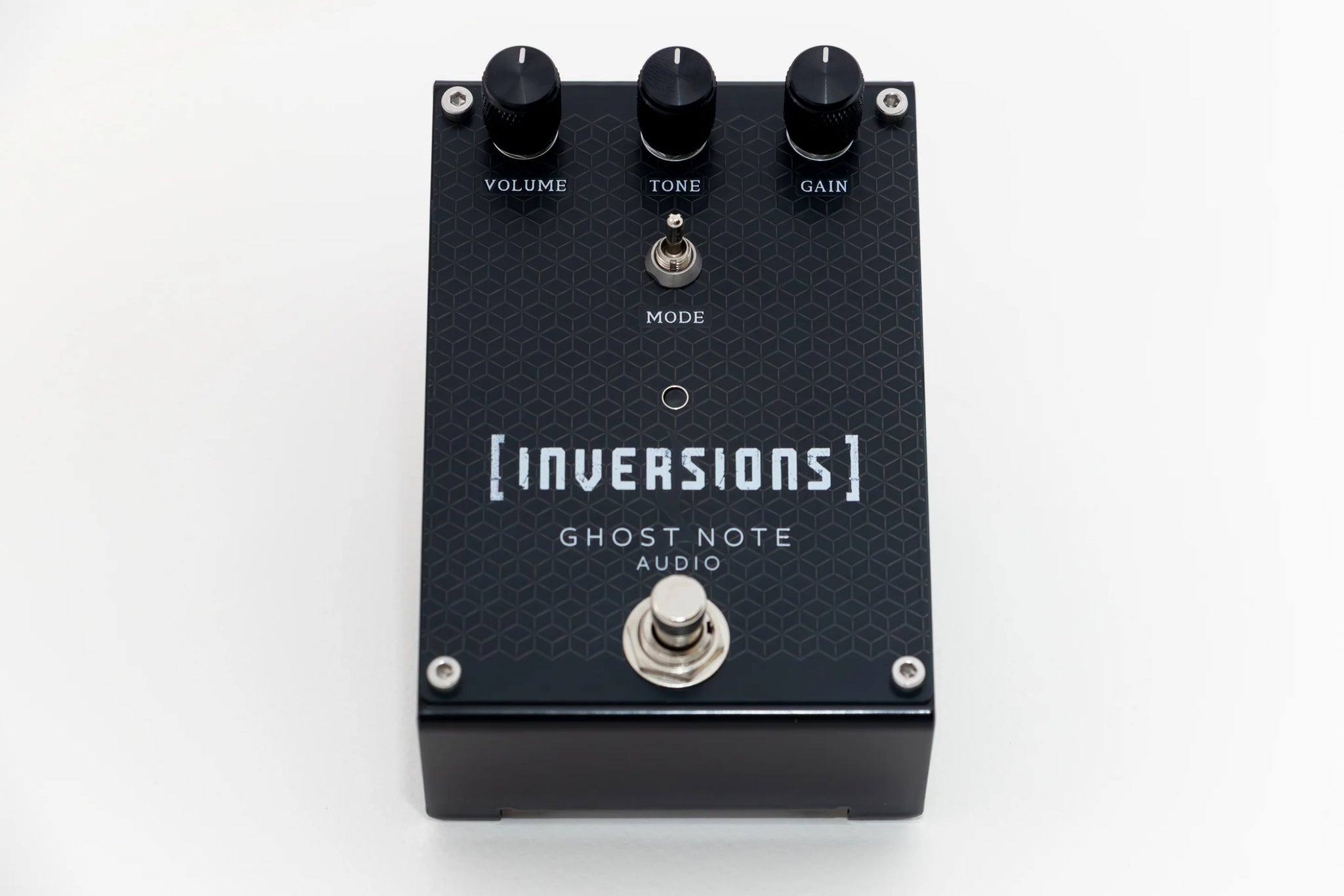

• Volume - Controls the output signal amplitude.
• Tone - Adjusts the tonestack / low-pass filter, setting the balance of treble and bass frequencies.
• Gain - Master gain knob.
• Mode Switch - Switches between two tone control circuits.
• Active Footswitch - Enables or bypasses the pedal entirely.
• Bypass Mode (bottom of the pedal) - Sets the operation of the pedal when in bypass mode. Choose between true bypass or buffered bypass.

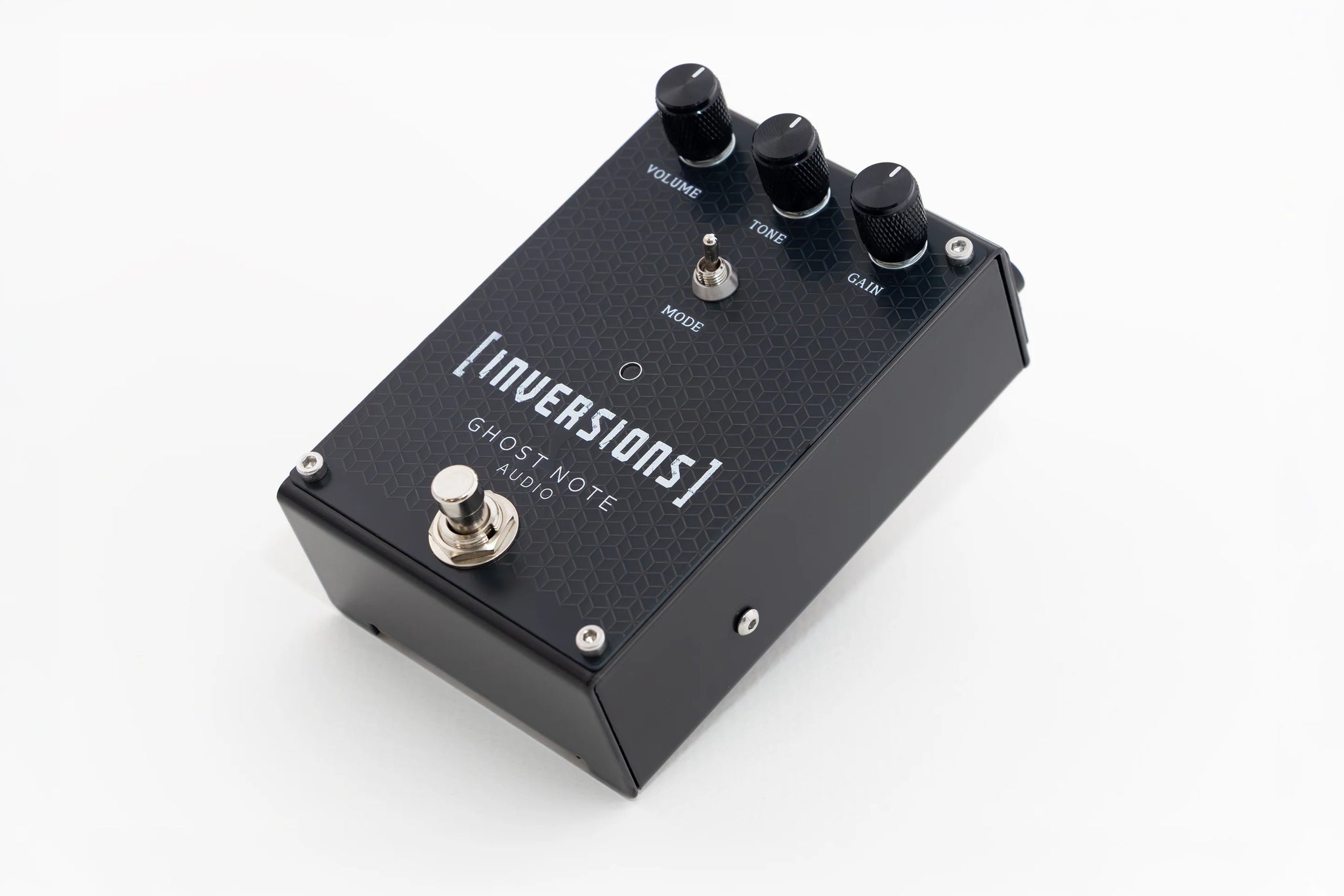

Details

Inversions maintains the same circuit topology as the original Big Muff, but uses CMOS 4049 inverter chips as its primary building blocks, as opposed to NPN transistors (or op amps in the Op-Amp Muff). The inverters impart their own unique sound and distort very differently from transistors, producing a smoother, thicker distortion that is fuller and less fuzzy than the original.

The original pedals had a very scooped-sounding tone stack, removing a lot of the mid-frequency content from the output signal. We wanted to give players the choice between a slightly more refined version of the original tone control and a more straightforward low-pass filter, similar to what is found on a RAT.

Note: the two modes do have a difference in output volume, so when toggling between them, you will need to adjust the volume knob as well to maintain the same loudness.

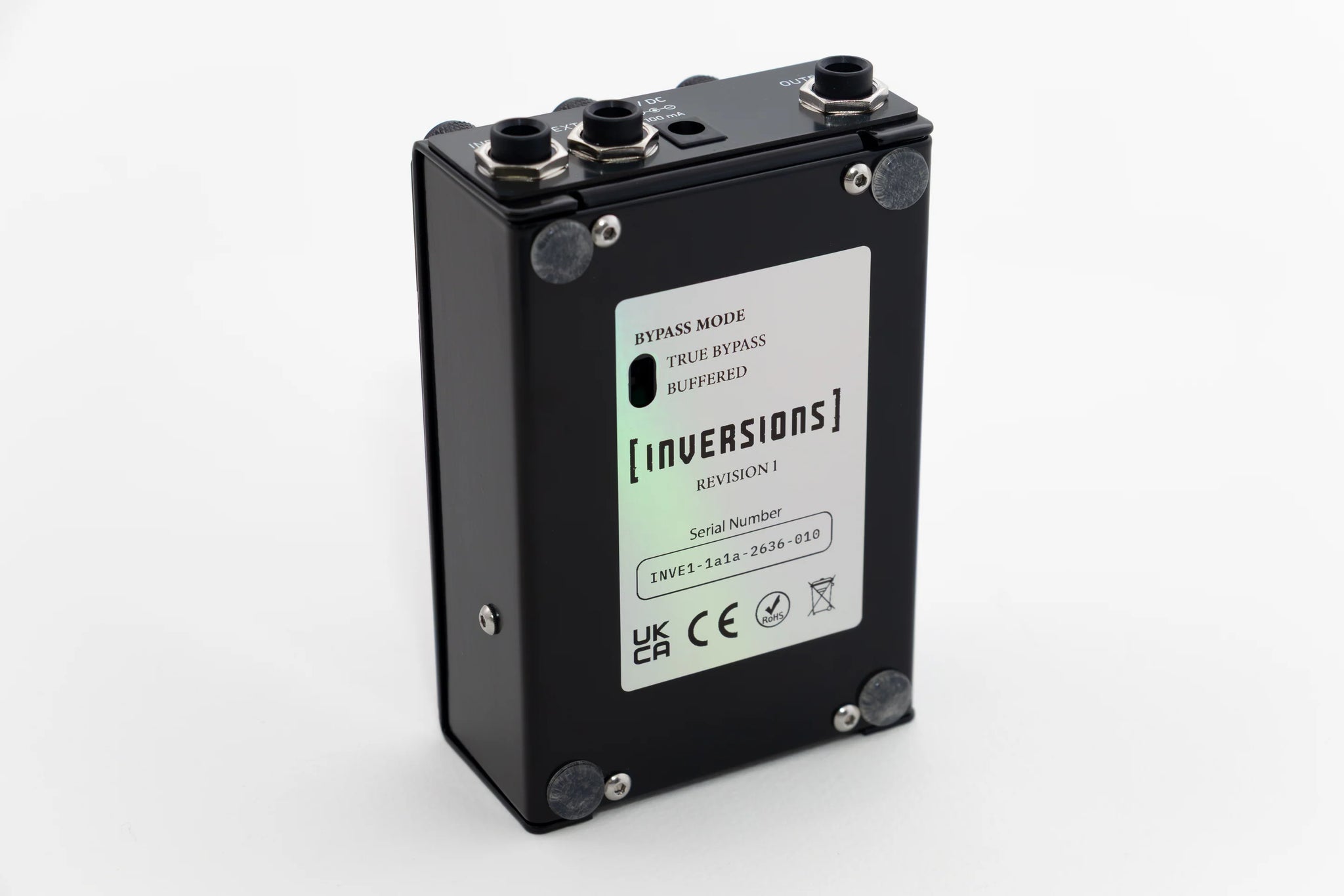

Choose your bypass operation by adjusting the slide switch on the bottom of the pedal. Use a small flathead screwdriver or a toothpick to carefully push the switch up or down.

In true bypass mode, the circuit is disconnected from the signal path when the pedal is bypassed. If power is disconnected from the pedal, the signal will still flow directly from input to output. This has its benefits when it comes to maintaining signal integrity and minimizing issues on large pedalboards, but it comes at the expense of noisier switching operation, where a faint "pop" sound can be heard when the pedal is engaged or bypassed.

Using a buffered bypass method means this pop is almost completely eliminated, as no physical contacts are being engaged or disconnected. A buffer in the signal chain can also be beneficial in certain scenarios, as it counteracts treble roll-off when using long instrument leads and provides a stronger signal for other pedals downstream.

We offer you the choice of either method so that you can integrate the pedal into your system in the best possible way.

The pedal can be controlled using an external switch connected via a 1/4" TRS connector. Both footswitches can be toggled using the external switching system.

Technical Specs

• Power Requirement: 9V DC, 100mA
• Power connector: 2.1mm center-negative barrel jack
• External Switching: 1/4" TRS connection. "Short to ground" operation.
  • Tip: Active Footswitch
  • Ring: Not used
  • Sleeve: Ground
• Input Impedance: >1MΩ
• Output Impedance: 1kΩ
• Bypass circuit: Buffered bypass or True Bypass
• Footswitch mechanism: Momentary, soft-touch, relay control.
  • Footswitch state is stored and recalled even when the pedal is disconnected from power.
• Dimensions: 83mm (W) 125mm (D) 55mm (H)
• Dimensions (with packaging): 126mm (W) 146mm (L) 67mm (H)
