Product Description

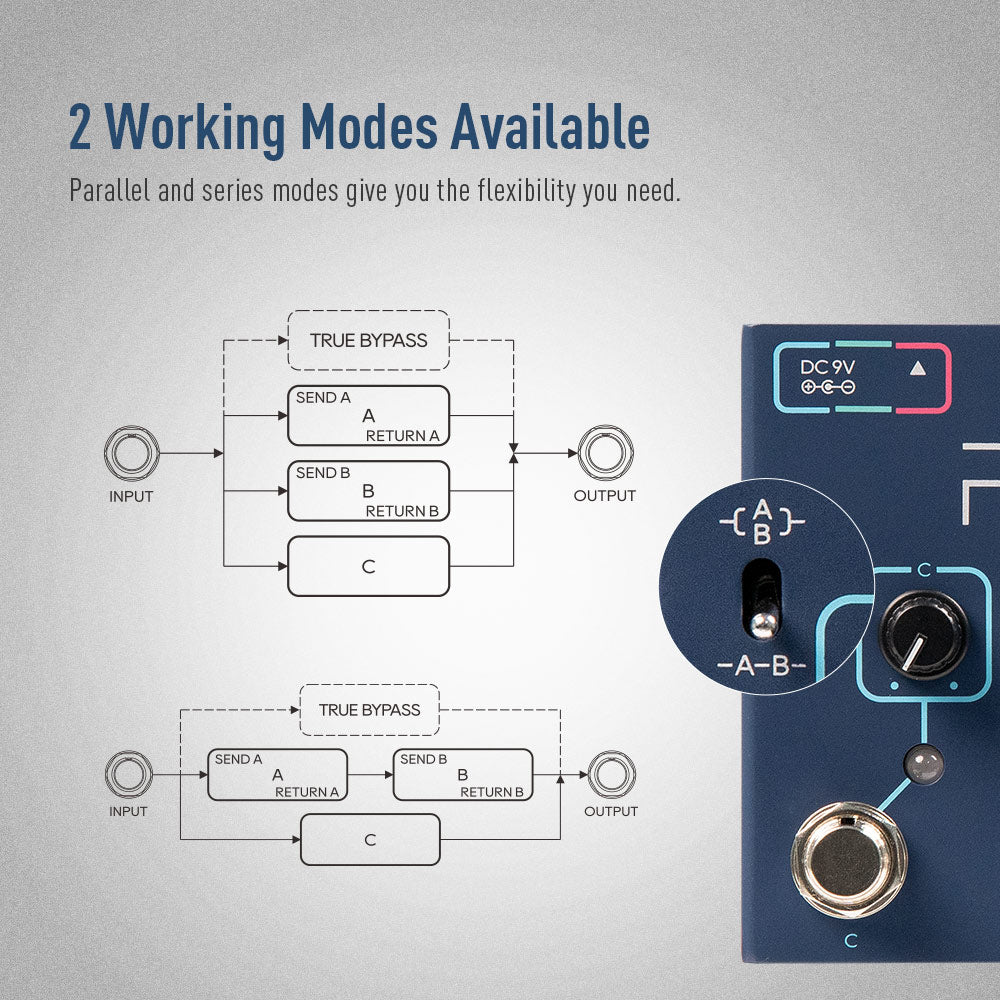

Portal is an active signal mixer with versatile functionality, designed for musicians and audio enthusiasts. It features two working modes: parallel and series, allowing flexible signal routing. In parallel mode, it offers two send/return loops and a main output, enabling you to combine three independent inputs or use it as an active ABY switch. In series mode, channels A and B are connected in series, with bypass options for each channel. The true bypass circuit ensures a clean signal path, maintaining your sound quality.
Features:
- Analog active signal mixer and line selector
- Two working modes: parallel and series
- Selectable among three channels

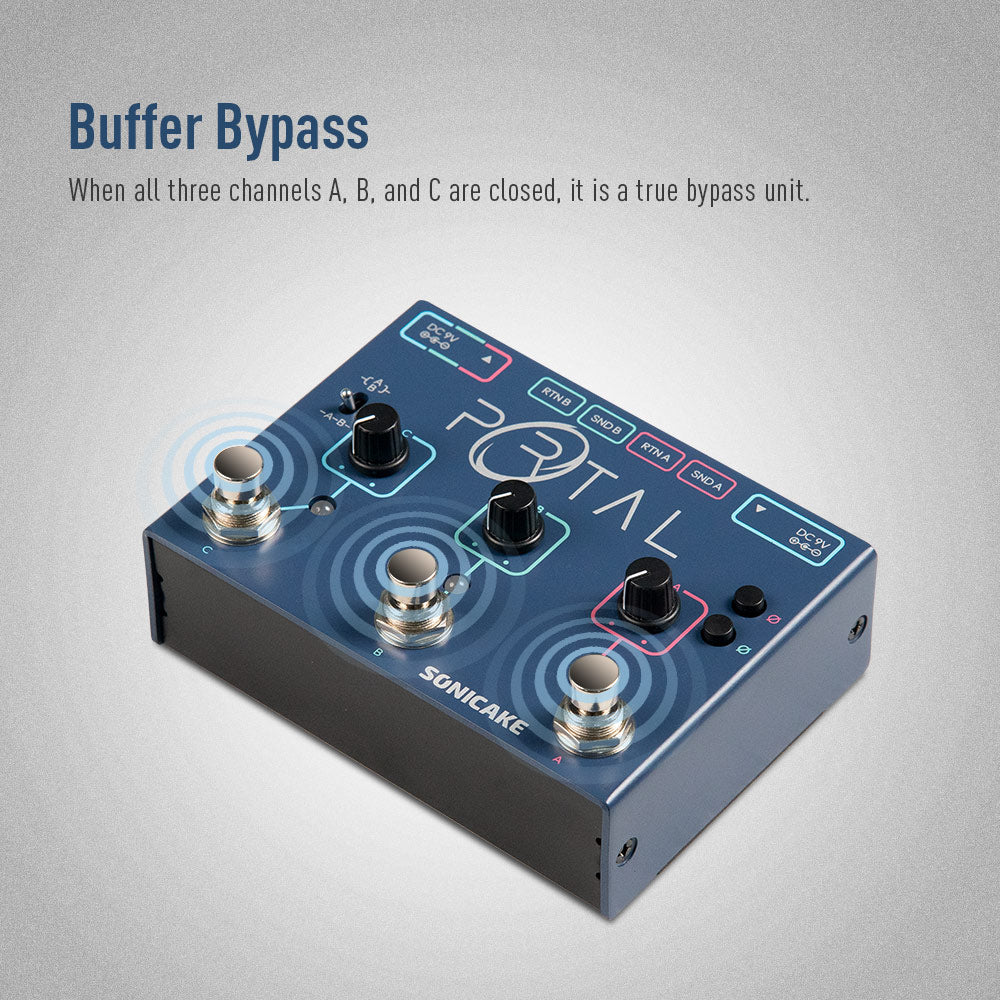

- True Bypass Circuit for clean signal

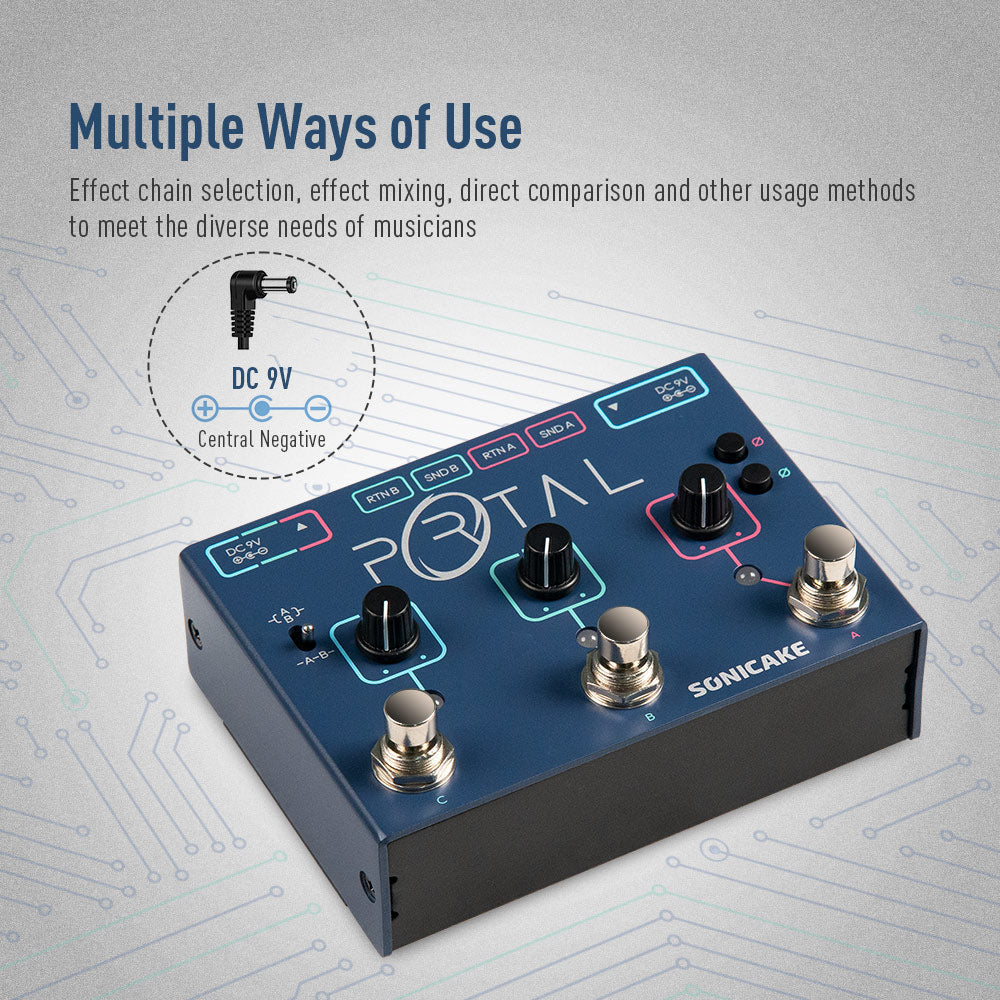

- Compatible with 9V center negative power supply (not included)
Specifications:
- Power: DC 9V, 5.5x2.1mm center negative, 97mA
- Dimensions: 124mm (D) x 90mm (W) x 54.8mm (H)
- Weight: 389g
- Input Impedance: 1MΩ
- Output Impedance: 1kΩ
- Send A Impedance: 1kΩ
- Send B Impedance: 1kΩ
- Return A Impedance: 100kΩ
