In stock

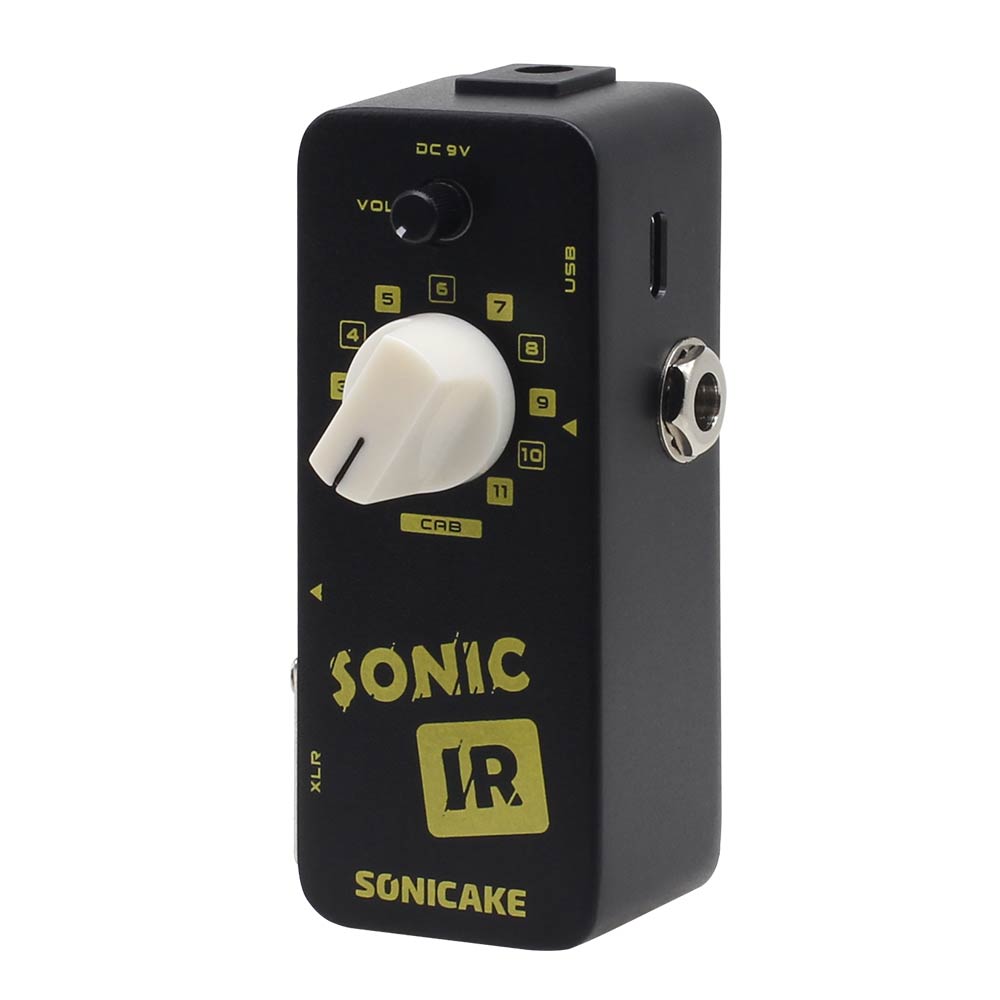

Sonic IR Cabinet Simulator
Experience a simple and efficient impulse response loading tool designed for simulating a variety of speaker cabinets. Perfect for guitar and bass players seeking authentic cabinet sounds.
Key Features

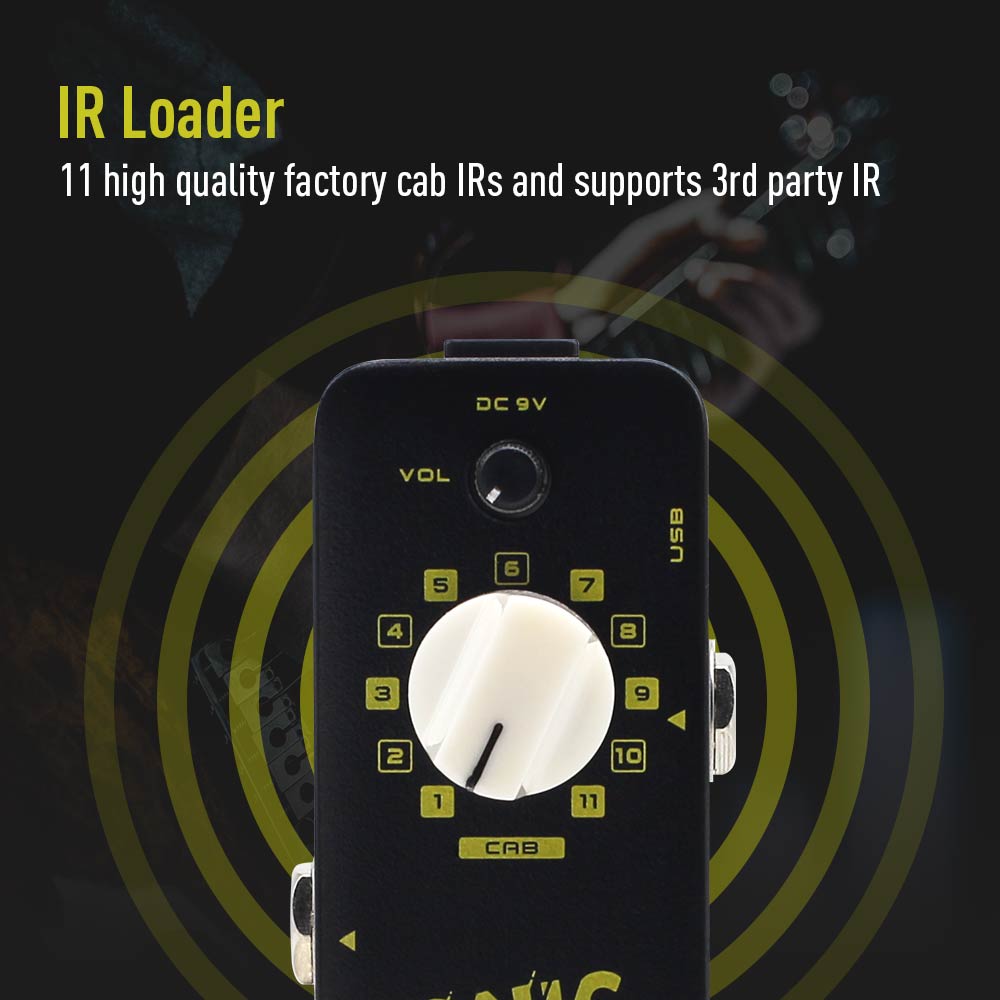

- 11 on-board classic guitar/bass cabinet models with volume control
- Easy drag-and-drop IR file management via USB disk recognition

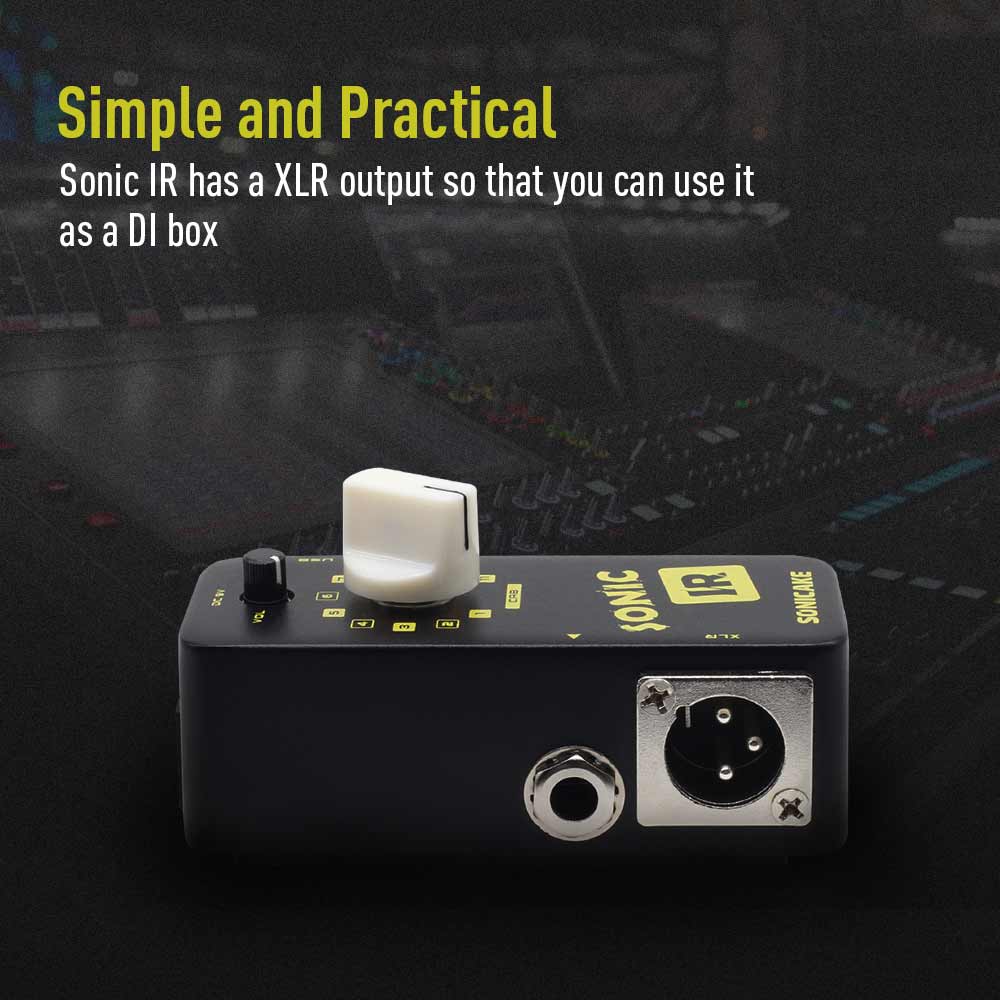

- XLR balanced output for connecting to mixers, audio interfaces, or PA systems
- Compatible with 9V center negative pedal power supply (not included)
Specifications
- Power: DC 9V, 200mA (center negative, 5.5x2.1mm)

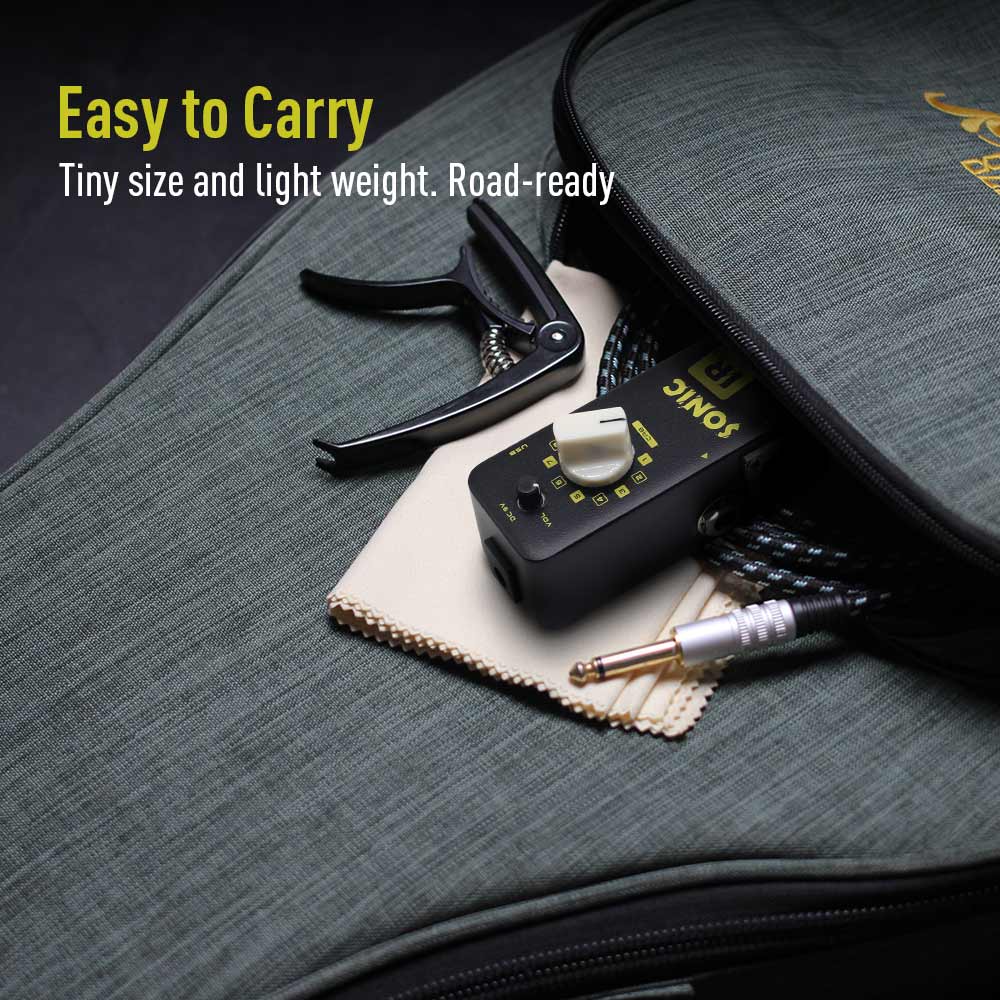

- Dimensions: 93.5mm x 42mm x 52mm
- Weight: 270g

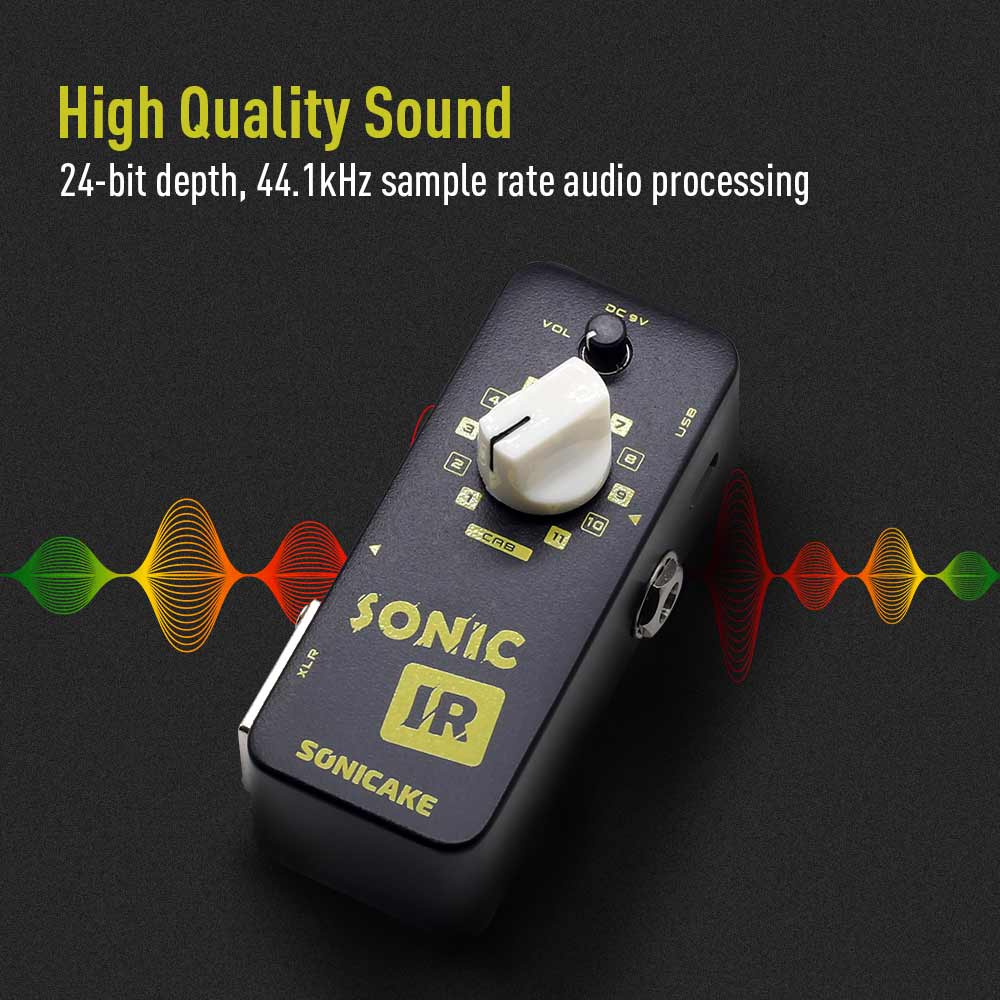

- IR Processing: 24-bit, 44.1kHz, 1024 points
- Signal-to-noise ratio: 100dB
- Frequency Range: 20Hz – 20kHz
Usage & IR File Management
Connect the Sonic IR to your computer via USB to import custom IR files. Drag and drop 24-bit, 44.1kHz mono WAV files into the device recognized as a USB disk. Files should be named with location numbers (01-11). To switch IRs, simply select the desired location. Factory IRs can be backed up before customization.
Included Cabinet Models
| No. | Name | Based On |
|---|---|---|
| 01 | Champion 1x8 | Fender® Champ 1x8" cabinet |
| 02 | Voks 2x12 | VOX® AC30 2x12" cabinet |
| 03 | TR65 2X12 | Fender® ‘65 Twin Reverb 2x12" cabinet |
| 04 | UK 2550 2x12 | Marshall® 2550 2x12" cabinet |
| 05 | BM59 4X10 | Fender® ‘59 Bassman 4x10" cabinet |
| 06 | Tanger 4x12 | Orange® PPC412 4x12" cabinet |
| 07 | UK 1960 4x12 | Marshall® 1960AV 4x12" cabinet |
| 08 | 6505 4x12 | Peavey® 6505 4x12" cabinet |
| 09 | Mebo 4x12 | Mesa/Boogie® Rectifier 4x12" cabinet |
| 10 | M Bass 2x10 | Mark Bass® 2x10" bass cabinet |
| 11 | A Bass 8x10 | Ampeg® SVT-810F 8x10" bass cabinet |
*Trademarks are the property of their respective owners and are used here for identification purposes only.
