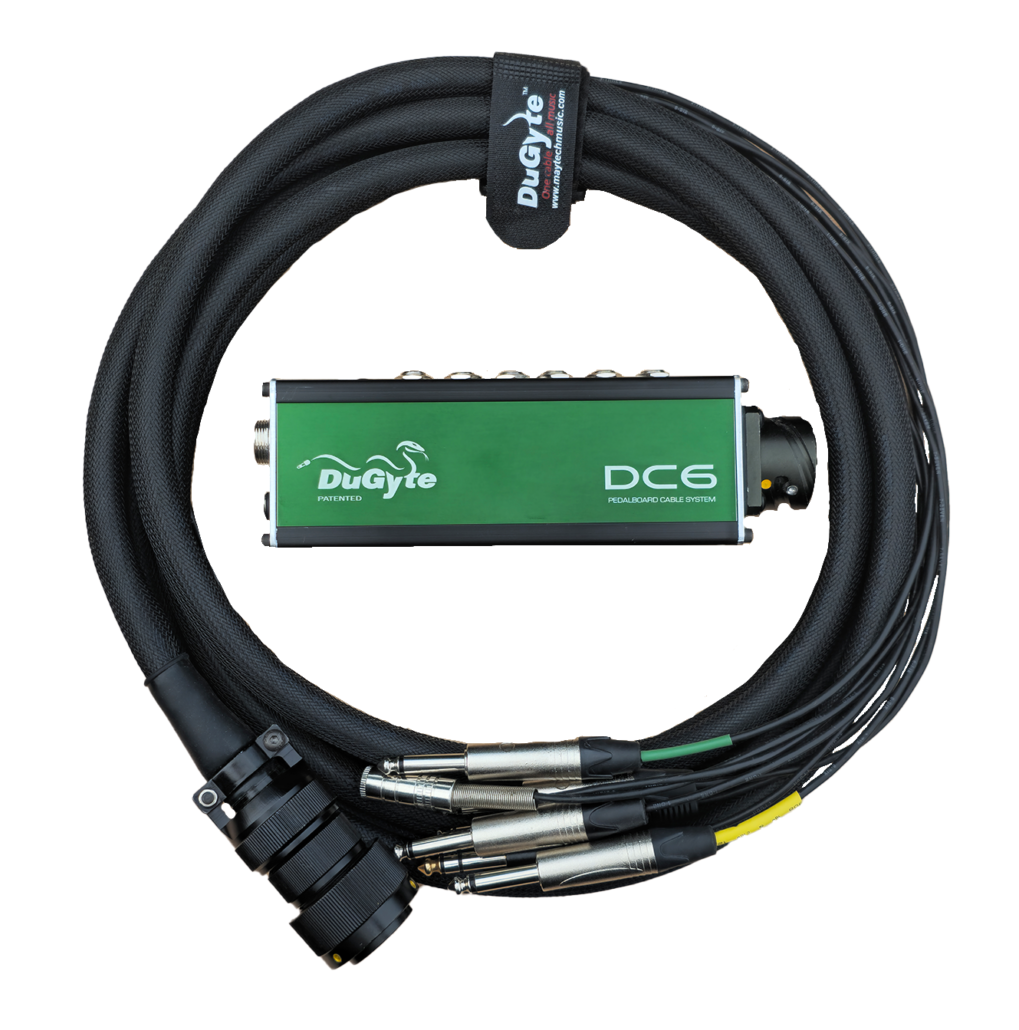

The DuGyte DC6 is a premium pedalboard cable system designed for DC-powered setups, offering a comprehensive solution to connect your pedals, amp, and power supply using a single, high-quality cable. Crafted with 100% pure copper conductors and advanced shielding, the DC6 ensures a clean, noise-free signal path, enhancing your overall tone. Its robust construction and versatile connectivity make it ideal for musicians seeking efficiency and reliability in their pedalboard configurations.
Key Features:
-
All-in-One Cable Design: Combines multiple signal and power lines into one cable, reducing clutter and simplifying connections.
-
High-Quality Construction: Utilizes 100% pure copper conductors and advanced shielding for optimal signal integrity.
-
Versatile Power Compatibility: Supports DC power supplies up to 24V, accommodating a wide range of pedals and multi-effects units.
-
Pedalboard Junction Box: Provides convenient connections for amp inputs, effects loops, and footswitches directly at the pedalboard.
-
Customizable Options: Available in various cable lengths and configurations to suit individual setups.
DuGyte Systems DC 6 Stereo Pedalboard Cable System delivers a fast and easy signal and power pedalboard connection solution using a just one cable loom. Using 100% pure copper conductors, the DuGyte DC 6 will deliver a complete noiseless performance, eliminate any hum or noise in your pedalboard – improving your tone and sound output.
The DuGyte DC 6 “Pedalboard Junction Box” provides the following connections at the pedalboard:
| Signal Inputs include | |
| Amplifier Input – Stereo Left & Right | 6.3 phono socket (Balanced) x 2 |
| Relay (Mono) | 6.3 phono socket (mono) for Wireless Loop back |
| Effects Send | 6.3 phono socket (mono) |
| Effects Return | 6.3 phono socket (mono) |
| Relay (Stereo) | 6.3 phono socket (stereo) for Amp Footswitch |
| Power Features | |
| DC power line | up to 24 VDC, 3 amps |
| LED Indicator | Power On |
The DC5 comes with a standard cable length of five (5) meters. Option is available to increase cable length when ordering. (Additional charges may apply)
DuGyte DC 6 Pedalboard Junction box
Located on the pedalboard, simply connect your power supply, pedals or multi effects unit to the corresponding inputs and outputs on the DC 6 Junction box.
1
2
3
4
5
DuGyte DC Series Power Connection
The DuGyte DC Series has what we call BYOPS, meaning Bring Your Own Power Supply – So the DC 6 will work with any DC pedalboard power supply-up to 24V, 3A DC.
Check out this Strymon Ojai connected to the DC 6!
1
2
The DuGyte DC 6 is what we call BYOPS which means Bring Your Own Power Supply – The DC 6 will work with any DC powered pedalboard power supply-up to 24v DC.
For example the DC Series will work with the following power supplies, plus many more.
| Brand | Model |
| MXR | DC Brick, ISO Brick |
| Voodoo Labs | Pedal Power X4, Pedal Power X8 |
| Strymon | Ojai, Ojai R30 |
| Walrus CANVAS | Power 5, Power 8, Power 15, Power 22 |
| Cioks | Cioks 4 Expander, Cioks 8 Expander, Cioks Crux |
| Mono Pedalboards | Small, Medium, Large |
| Warwick Rockboard | ISO V6, ISO V6+, ISO V10, ISO V16 |
| JOYO | JP-04, JP-05 |
| Ernie Ball | VOLT Power Supply |
| Eventide | Power Mini |
(If you use a AC power supply like a Zuma or a Voodoo Labs 2 or 3, see the MX Series)
Specifications:
-
Cable Length: Standard 5 meters; custom lengths available upon request.
-
Connectors: 19-pin bayonet connector for secure and reliable connections.
-
Signal Channels: Includes multiple mono and stereo channels for comprehensive routing options.
-
Power Output: Two 2.1mm DC power outputs with negative center pin configuration.
-
Temperature Range: Designed to operate in temperatures ranging from -20°C to +70°C.
| DC 6 Signal Inputs | |
| Pedalboard Junction box | Amplifier x 2 (Balanced inputs) Relay (Stereo), Relay (Mono) Effects Loop Send & Return |
| DC 6 Power Out | |
| At the pedalboard | 2 x 2.1mm power outs Negative pin, Positive sleeve |
| DC 6 Back Stage Connectors | |
| 6.3mm Phono jack | Stereo jack plug for balance Amplifier x 2 and Relay x 1 |
| 6.3mm Phono jack | Mono jack plug for Relay (Mono), Effects Send & Return |
| DC 6 Cable Connector | |
| Maytech MPJL5-19 |
19 Pin Bayonet Connecto |
| Cobra DC 5 Cable Specifications | |
| Cable | DuGyte Flex 07 x 24AWG |
| Capacitance | cond / cond 85pfm cond / shield 170pfm |
| Conductor | 100% pure copper 7 x 0.20mm |
| Conductor Resistance | <85Ω/km |
| Crosstalk Attenuation | >100dB (15khz) |
| Working Temp | – 20◦C / +70◦C |
Included Components:
-
DuGyte DC6 Cable Loom: The main cable assembly integrating all signal and power lines.
-
Pedalboard Junction Box: Central hub for connecting pedals, amp, and other equipment.
-
User Manual: Detailed instructions for setup and customization.
Why Choose DuGyte DC6?
The DuGyte DC6 is ideal for musicians who value efficiency and clarity in their setups. Its all-in-one design reduces the need for multiple cables, streamlining your pedalboard and reducing setup time. The high-quality construction ensures a clean signal path, preserving the integrity of your tone. Whether you're a touring professional or a home studio enthusiast, the DC6 offers a reliable and customizable solution to meet your needs.
Note: The DuGyte DC6 is designed for DC-powered pedalboards. If you're using an AC-powered setup, please consider the DuGyte MX Series for optimal compatibility.
The Real-World Problems DuGyte Systems Solve:
The real-world problems musicians face with pedalboard setups can be overwhelming, and Dugyte has developed a solution for each. Here's how Dugyte helps:
1. Eliminates Cable Clutter
The average pedalboard has up to 7 cables running in all directions: signal cables, power cables, ground wires, and more. Dugyte combines these into one single cable, reducing clutter and making setup, transport, and teardown simpler than ever.
2. Simplifies Complex Connections
For those using multi-effects units like Fractal or Helix, traditional setups often require multiple cables for different routing methods (Pre/Post, 4CM, etc.). Dugyte combines 4, 5, or even 6 cable methods into just one cable, allowing for seamless integration of complex setups without changing cables every time you want to switch modes.
3. Noise Reduction from AC and DC Power Isolation
One of the biggest problems with pedalboard setups is the persistent hum or buzz that comes from improper grounding or power interference. Dugyte tackles this by isolating both AC and DC power, ensuring earth isolation that eliminates hum at its source. For AC power, this is especially critical, as improper grounding can lead to serious noise issues, especially with large rigs.
5. Fast Set-up and Tear-Down
Whether you're in a studio or touring, time is of the essence when setting up your gear. Dugyte's system is designed for quick setup — less than 30 seconds and you’re ready to play! No more spending hours untangling cables or struggling to figure out how to plug everything in.
6. AC or DC Power Options
No need for cumbersome wall warts or power strips on your pedalboard. Dugyte's system works with any AC or DC power source, so you can eliminate the need for separate power supplies. This makes it easier to power pedals without crowding your pedalboard with extra equipment. (model dependant)
7. Works with Any Power Supply
Unlike some pedalboard solutions that require you to use specific power supplies, Dugyte works with any power supply, giving you the freedom to use the one that fits your setup without restriction.
8. Custom Options for Every Player
Whether you’re a bedroom guitarist or a touring professional, Dugyte offers custom solutions to meet your unique needs. From power options to cable lengths, Dugyte can be tailored to ensure the best fit for your setup. Contact us for Custom Build Quotes.
9. Full Connection to Amp Inputs
One of the most inconvenient aspects of pedalboard setups is having to reach around to the back of your amp to adjust inputs. With Dugyte, all your amp’s inputs, sends, returns, foot switches, wireless connections, etc can be conveniently located on your pedalboard. No more awkward reaching behind your amp or struggling to plug things in. Dugyte allows you to place your entire amp’s I/O right at your feet, on your pedalboard. This allows you to control all amp connections from one central location without leaving your pedalboard area. Whether you’re in the studio or on stage, you’ll have easy access to everything you need.
10. Simplifies Setup and Packup for Touring
Touring musicians face the challenge of quickly setting up and tearing down their rigs. With Dugyte, you can simplify and reduce stress in setup and backup by using a single, reliable system for all your connections. Save time, reduce risks, and keep everything in one place.
Who is Dugyte Designed For?
Dugyte is not just for the pro musician; it’s designed for everyone, from bedroom players to touring pros. Whether you’re playing on a small setup with just a few pedals or working with a complex multi-effects rig, Dugyte can help. It’s versatile enough for any player who wants to simplify their pedalboard connections, reduce cable mess, and improve sound quality.
- Bedroom Players: Dugyte makes your home setup easier, cleaner, and more organized.
- Studio Musicians: Get rid of the mess of cables in the studio and streamline your workflow.
- Touring Professionals: Dugyte’s fast setup and robust design make it the perfect solution for road-ready musicians.
The Origins of Dugyte: Solving Real Problems
Dugyte was created out of the simple desire to make pedalboard setup easier, faster, and quieter. The founder, having spent years dealing with tangled cables, noisy power supplies, and complicated setups, wanted to create a solution that would reduce the stress of getting ready to play. By eliminating the need for multiple cables, hum, and excessive power strips, Dugyte offers a clean, fast, and customizable alternative to the old-school pedalboard setups.
How Dugyte Eliminates Noise and Hum
Dugyte’s power isolation technology and individual grounding for each line help eliminate any unwanted noise or hum that could affect your performance. This technology ensures that both AC and DC power are fully isolated, which is a critical feature for reducing power-related noise.
Furthermore, Dugyte integrates HumBuster cable technology, which allows up to 40 pedals to be connected at the same time without an increase in perceptible noise. This is a major breakthrough in pedalboard setups, as most systems would amplify noise with such a high number of pedals.
Flexibility and Versatility with Multi-Effects Units
For players using advanced multi-effects units like Axe-FX, Helix, or Fractal, Dugyte’s system can accommodate single cable, dual cable, or 4CM setups without the need to switch cables. This means no more cable changes when switching between different configurations. You get the freedom to use the same system for a variety of setups, making it the ultimate flexible solution for any musician.
Why Every Guitarist Should Rely on Dugyte
- Simplified Setup: Save time with less than 30 seconds to set up your entire pedalboard.
- Cleaner Sound: Eliminate hum and noise with advanced power isolation and HumBuster technology.
- All-in-One Solution: Reduce up to 7 cables to just one, making your rig more organized and efficient.
- Tour-Ready: Perfect for touring pros who need a fast, reliable, and easy-to-use system.
- Customizable: Tailor your system to meet your exact needs, whether you're at home or on the road.
