The Ultimate Cable Solution for AC-Powered Pedalboards
The DuGyte MX5 is a cutting-edge pedalboard cable system designed for AC-powered setups, offering a comprehensive solution to connect your pedals, amp, and power supply using a single, high-quality cable. Crafted with 100% pure copper conductors and advanced shielding, the MX5 ensures a clean, noise-free signal path, enhancing your overall tone.
Key Features:
-
All-in-One Cable Design: Integrates multiple signal and power lines into a single cable, reducing clutter and simplifying connections.
-
High-Quality Construction: Utilizes 100% pure copper conductors and advanced shielding for optimal signal integrity.
-
AC Power Compatibility: Supports AC power supplies up to 240V, accommodating a wide range of pedals and multi-effects units.
-
Pedalboard Junction Box: Provides convenient connections for amp inputs, effects loops, and footswitches directly at the pedalboard.
-
Customizable Options: Available in various cable lengths and configurations to suit individual setups.

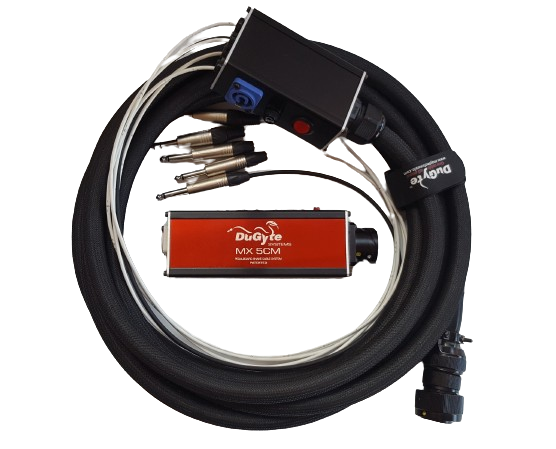

DuGyte 5CM Pedalboard Junction box
Located on the pedalboard, simply connect your power, pedals or multi effects unit to the corresponding inputs and outputs on the 5CM Junction box.
1
2
3
4
DuGyte 5CM Power Connection
The DuGyte MX Series offers the best of both worlds when in comes to power. AC and optional DC power can be supplied using just the single DuGyte Cable. So BYOPS, (Bring Your Own Power Supply) – stands true with the MX Series too. If you use AC powered DC power supplies to power your stomp box pedals, the 5CM cable is what you need! (If you need DC power just let us know when ordering)
For example the Voodoo labs, Zuma, Cioks, to name a few
DuGyte Systems MX 5CM delivers a fast and easy 4 or 5 cable method signal and power pedalboard connection solution using just one cable loom. Using 100% pure copper conductors and AC Ground Isolation Circuity, the DuGyte 5CM will deliver a complete noiseless performance, eliminate any hum, buzz or noise in your pedalboard – improving your tone and sound output.
The DuGyte 5CM “Pedalboard Junction Box” provides the following connections at the pedalboard:
| Signal Inputs include | |
| Amplifier Input | 6.3 phono socket (Humbuster) |
| Relay (Mono) | 6.3 phono socket (mono) for Wireless Loop back |
| Effects Send | 6.3 phono socket (mono) |
| Effects Return | 6.3 phono socket (Humbuster) |
| Relay (Stereo) | 6.3 phono socket (stereo) for Amp Footswitch |
| Power Features | |
| AC power line | Universal 110/240 VAC at up to 10 amps |
The 5CM comes with a standard cable length of five (5) meters. Option is available to increase cable length when ordering. (Additional charges will apply)
Specifications:
-
Cable Length: Standard 5 meters; custom lengths available upon request.
-
Connectors: 19-pin bayonet connector for secure and reliable connections.
-
Signal Channels: Includes multiple mono and stereo channels for comprehensive routing options.
-
Power Output: One AC power output with ground isolation to eliminate hum.
-
Temperature Range: Designed to operate in temperatures ranging from -20°C to +70°C.
| 5CM Signal Inputs | |
| Pedalboard Junction box | Amplifier, Relay (Stereo), Relay (Mono) Effects Loop Send & Return |
| 5CM Power Out | |
| At the pedalboard | AC PowerCon to IEC plug |
| 5CM Back Stage Connectors | |
| 6.3mm Phono jack | Stereo jack plug for balance Relay |
| 6.3mm Phono jack | Mono jack plug for Amp, Relay (Mono) Effects Send & Return |
| 5CM Cable Connector | |
| Maytech MPJL5-19 | 19 Pin Bayonet Connector |
| MX5CM Cable Specifications | |
| Cable – Signal | DuGyte Flex 07 x 24AWG |
| Cable Power | DuGyte Flex 19 x 14 AWG |
| Capacitance | cond / cond 85pfm cond / shield 170pfm |
| Conductor | 100% pure copper 7 x 0.20mm |
| Conductor Resistance | <85Ω/km |
| Crosstalk Attenuation | >100dB (15khz) |
| Working Temp | – 20◦C / +70◦C |
The DuGyte 5CM is also part of what we call BYOPS which means Bring Your Own Power Supply – The 5CM will work with any AC (110 / 240 VAC) powered DC pedalboard power supply.
For example it will work with the following power supplies, plus many more.
| Brand | Model |
| Voodoo labs | Pedal Power 3, Pedal Power 3 Plus, Pedal Power 2 Plus, Pedal Power ISO 5, Pedal Power 4×4, Pedal Power MONDO |
| Cioks | Cioks SOL, Cioks DC7, Cioks DC10, Cioks AC10 |
| Rockboard | ISO Block V6 IEC, ISO Block V9 IEC, ISO Block V12 IEC |
| Strymon | Zuma, Zuma R300 |
| Fender | Engine Room LVL5, Engine Room LVL8, Engine Room LVL12 |
| NUX | Zeus Z10 |
If you use a DC power supply like a Ojai or VOLT See the DC Series
Included Components:
-
DuGyte MX5 Cable Loom: The main cable assembly integrating all signal and power lines.
-
Pedalboard Junction Box: Central hub for connecting pedals, amp, and other equipment.
-
User Manual: Detailed instructions for setup and customization.
Why Choose DuGyte MX5?
The DuGyte MX5 is ideal for musicians who value efficiency and clarity in their setups. Its all-in-one design reduces the need for multiple cables, streamlining your pedalboard and reducing setup time. The high-quality construction ensures a clean signal path, preserving the integrity of your tone. Whether you're a touring professional or a home studio enthusiast, the MX5 offers a reliable and customizable solution to meet your needs.
Note: The DuGyte MX5 is designed for AC-powered pedalboards. If you're using a DC-powered setup, please consider the DuGyte DC Series for optimal compatibility.
The Real-World Problems DuGyte Systems Solve:
The real-world problems musicians face with pedalboard setups can be overwhelming, and Dugyte has developed a solution for each. Here's how Dugyte helps:
1. Eliminates Cable Clutter
The average pedalboard has up to 7 cables running in all directions: signal cables, power cables, ground wires, and more. Dugyte combines these into one single cable, reducing clutter and making setup, transport, and teardown simpler than ever.
2. Simplifies Complex Connections
For those using multi-effects units like Fractal or Helix, traditional setups often require multiple cables for different routing methods (Pre/Post, 4CM, etc.). Dugyte combines 4, 5, or even 6 cable methods into just one cable, allowing for seamless integration of complex setups without changing cables every time you want to switch modes.
3. Noise Reduction from AC and DC Power Isolation
One of the biggest problems with pedalboard setups is the persistent hum or buzz that comes from improper grounding or power interference. Dugyte tackles this by isolating both AC and DC power, ensuring earth isolation that eliminates hum at its source. For AC power, this is especially critical, as improper grounding can lead to serious noise issues, especially with large rigs.
5. Fast Set-up and Tear-Down
Whether you're in a studio or touring, time is of the essence when setting up your gear. Dugyte's system is designed for quick setup — less than 30 seconds and you’re ready to play! No more spending hours untangling cables or struggling to figure out how to plug everything in.
6. AC or DC Power Options
No need for cumbersome wall warts or power strips on your pedalboard. Dugyte's system works with any AC or DC power source, so you can eliminate the need for separate power supplies. This makes it easier to power pedals without crowding your pedalboard with extra equipment. (model dependant)
7. Works with Any Power Supply
Unlike some pedalboard solutions that require you to use specific power supplies, Dugyte works with any power supply, giving you the freedom to use the one that fits your setup without restriction.
8. Custom Options for Every Player
Whether you’re a bedroom guitarist or a touring professional, Dugyte offers custom solutions to meet your unique needs. From power options to cable lengths, Dugyte can be tailored to ensure the best fit for your setup. Contact us for Custom Build Quotes.
9. Full Connection to Amp Inputs
One of the most inconvenient aspects of pedalboard setups is having to reach around to the back of your amp to adjust inputs. With Dugyte, all your amp’s inputs, sends, returns, foot switches, wireless connections, etc can be conveniently located on your pedalboard. No more awkward reaching behind your amp or struggling to plug things in. Dugyte allows you to place your entire amp’s I/O right at your feet, on your pedalboard. This allows you to control all amp connections from one central location without leaving your pedalboard area. Whether you’re in the studio or on stage, you’ll have easy access to everything you need.
10. Simplifies Setup and Packup for Touring
Touring musicians face the challenge of quickly setting up and tearing down their rigs. With Dugyte, you can simplify and reduce stress in setup and backup by using a single, reliable system for all your connections. Save time, reduce risks, and keep everything in one place.
Who is Dugyte Designed For?
Dugyte is not just for the pro musician; it’s designed for everyone, from bedroom players to touring pros. Whether you’re playing on a small setup with just a few pedals or working with a complex multi-effects rig, Dugyte can help. It’s versatile enough for any player who wants to simplify their pedalboard connections, reduce cable mess, and improve sound quality.
- Bedroom Players: Dugyte makes your home setup easier, cleaner, and more organized.
- Studio Musicians: Get rid of the mess of cables in the studio and streamline your workflow.
- Touring Professionals: Dugyte’s fast setup and robust design make it the perfect solution for road-ready musicians.
The Origins of Dugyte: Solving Real Problems
Dugyte was created out of the simple desire to make pedalboard setup easier, faster, and quieter. The founder, having spent years dealing with tangled cables, noisy power supplies, and complicated setups, wanted to create a solution that would reduce the stress of getting ready to play. By eliminating the need for multiple cables, hum, and excessive power strips, Dugyte offers a clean, fast, and customizable alternative to the old-school pedalboard setups.
How Dugyte Eliminates Noise and Hum
Dugyte’s power isolation technology and individual grounding for each line help eliminate any unwanted noise or hum that could affect your performance. This technology ensures that both AC and DC power are fully isolated, which is a critical feature for reducing power-related noise.
Furthermore, Dugyte integrates HumBuster cable technology, which allows up to 40 pedals to be connected at the same time without an increase in perceptible noise. This is a major breakthrough in pedalboard setups, as most systems would amplify noise with such a high number of pedals.
Flexibility and Versatility with Multi-Effects Units
For players using advanced multi-effects units like Axe-FX, Helix, or Fractal, Dugyte’s system can accommodate single cable, dual cable, or 4CM setups without the need to switch cables. This means no more cable changes when switching between different configurations. You get the freedom to use the same system for a variety of setups, making it the ultimate flexible solution for any musician.
Why Every Guitarist Should Rely on Dugyte
- Simplified Setup: Save time with less than 30 seconds to set up your entire pedalboard.
- Cleaner Sound: Eliminate hum and noise with advanced power isolation and HumBuster technology.
- All-in-One Solution: Reduce up to 7 cables to just one, making your rig more organized and efficient.
- Tour-Ready: Perfect for touring pros who need a fast, reliable, and easy-to-use system.
- Customizable: Tailor your system to meet your exact needs, whether you're at home or on the road.
Read More
